GitHub-hosted runners with Azure private networking

After my previous fiddling with Azure Container Apps I decided to seeked out how to achive access a private azure network from a GitHub-hosted runner.

How it works

When a workflow is triggered, GitHub creates a runner service and deploys a network interface card (NIC) in the customers private azure network. Once the nic is created an attached, the job is picked up by the runner and started. The runner logs are sent back to GitHub Actions while the runner has access to any resource in the vNet.

Service network communication overview — network communication overview

Who can use this feature

Azure private networking for GitHub-hosted runners requires an organization with the GitHub Team plan. Creation of GitHub-hosted runners is not allowed on trail plans however, so here I’m upgrading for a month.

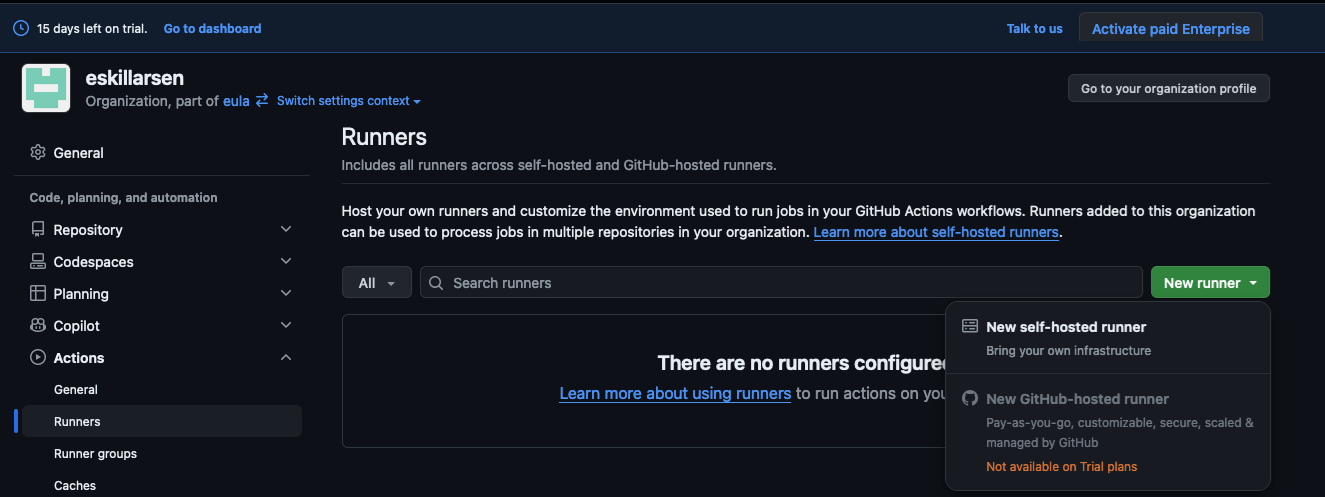

New GitHub-hosted runner not allowed on trail plans — creation of GitHub-hosted runner not allowed on trail plans

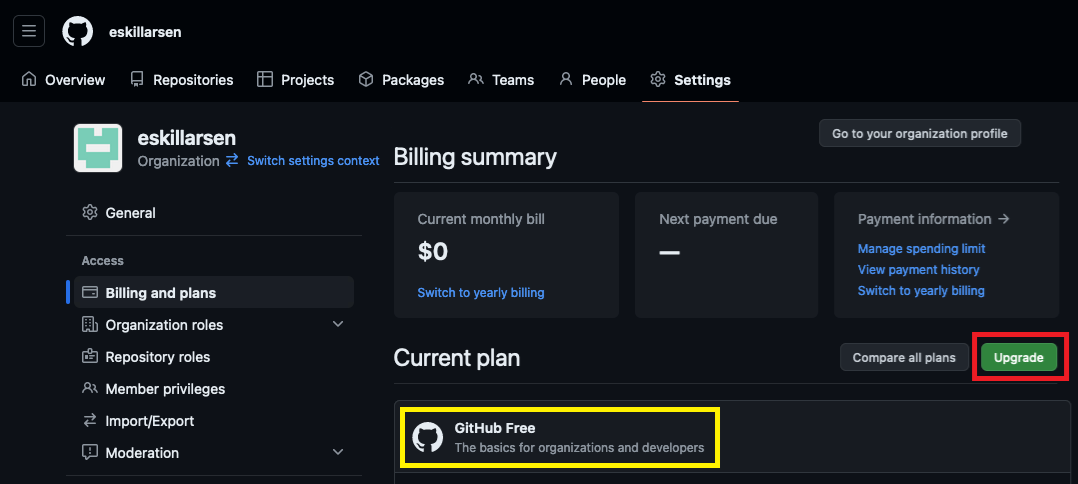

GitHub current plan — current GitHub plan

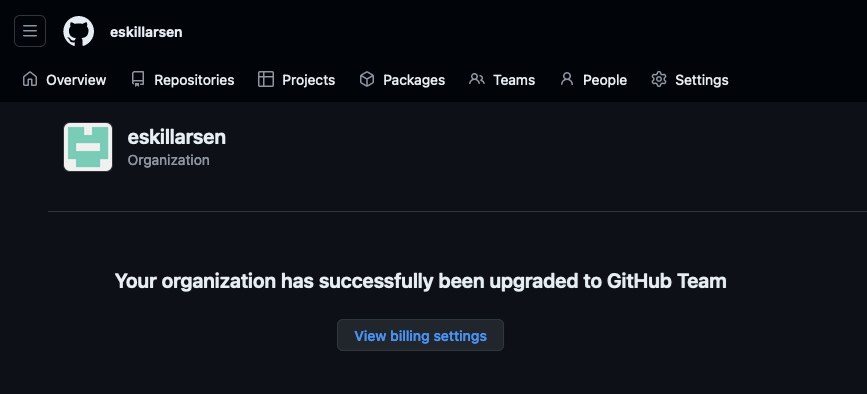

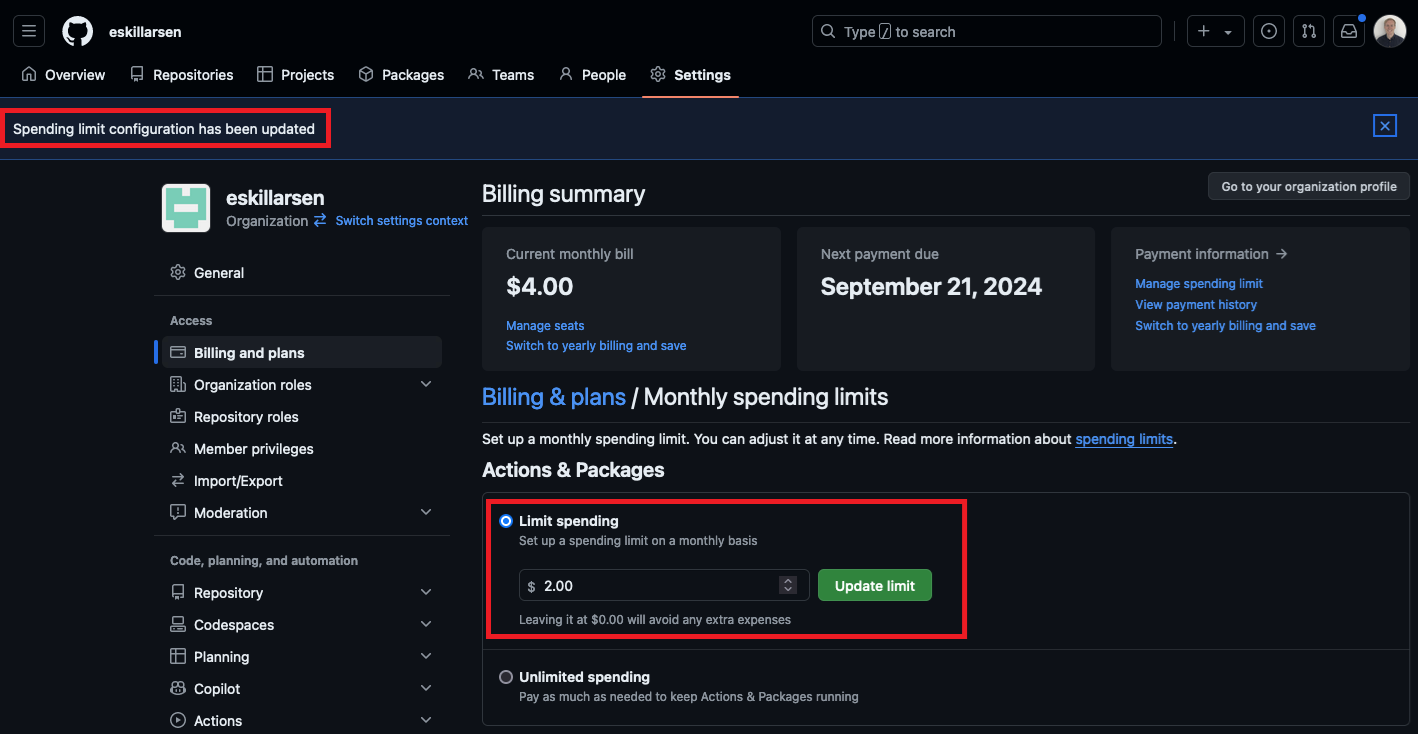

Upgraded organization — upgraded to Team plan

Preparation

Before GitHub can be configured access into your vNet there is some prereqs:

The resource provider GutHub.Network must be registered on the subscription with the vNet.
Find the database id for your GitHub organization.

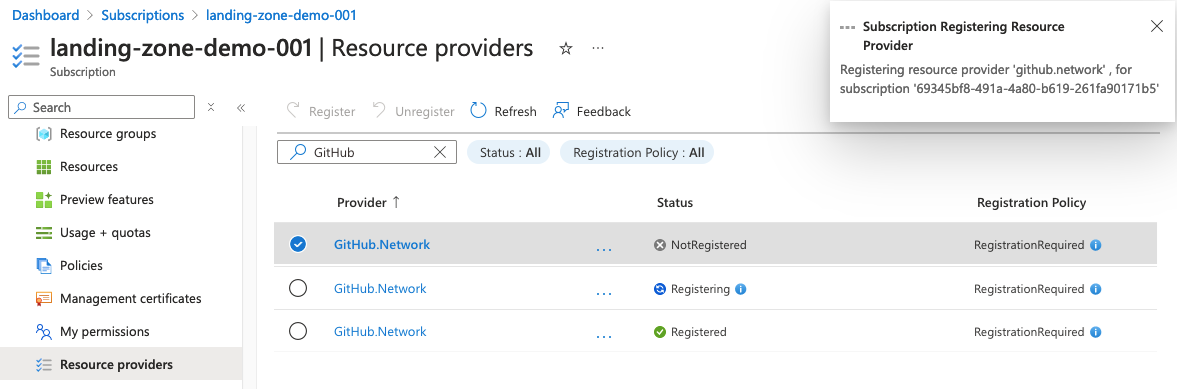

Resource Provider

Set-AzContext -Subscription 'landing-zone-demo-001'
Register-AzResourceProvider -ProviderNamespace 'GitHub.Network'

Find GitHub organization databaseId

To find the databaseId you need a token with minimum read:org permissions.

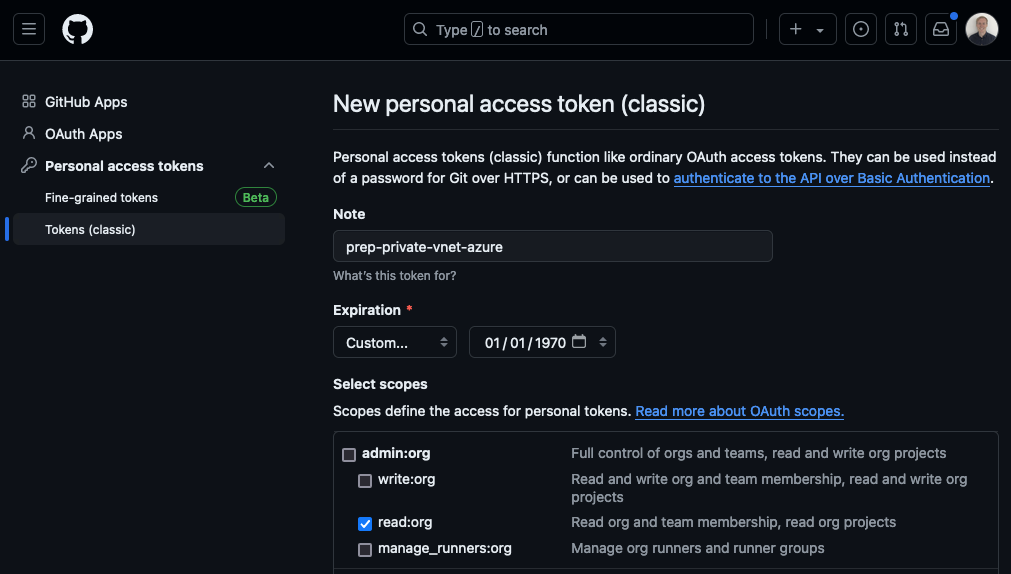

New GitHub PAT — PAT to fetch GitHub organization databaseId

Once the PAT is ready, use it to query for your databaseId.

$OrganizationName = 'eskill...'
$BearerToken = '<REDACTED>'

$splat = @{
    Uri = 'https://api.github.com/graphql'
    Method = 'POST'
    Authentication = 'OAuth'
    Token = ConvertTo-SecureString -AsPlainText -Force -String $BearerToken
    Body = @{
        "query" = 'query($login: String!) { organization (login: $login) { login databaseId } }'
        "variables" = @{ "login" = $OrganizationName }
    } | ConvertTo-Json
}

(Invoke-RestMethod @splat).data.organization

    login       databaseId
    -----       ----------
    eskill...   123456789

Deploy Azure resources

Now is the time to deploy the azure resources needed. The full example on GitHub deploys all additional resources such as the vNet, subnet, storage account and uami. The following code is a minimal example for the githubNetworkSettings and nsg.

param parLocation string
param parNetworkSettingsName string
param parSubnetId string
param parGitHubDatabaseId string
param nsgName string = 'actions_NSG'

resource githubNetworkSettings 'GitHub.Network/networkSettings@2024-04-02' = {
  name: parNetworkSettingsName
  location: parLocation
  properties: {
    subnetId: parSubnetId
    businessId: parGitHubDatabaseId
  }
}

resource actions_NSG 'Microsoft.Network/networkSecurityGroups@2017-06-01' = {
  name: nsgName
  location: location
  properties: {
    securityRules: [
      {
        name: 'AllowVnetOutBoundOverwrite'
        properties: {
          protocol: 'TCP'
          sourcePortRange: '*'
          destinationPortRange: '443'
          sourceAddressPrefix: '*'
          destinationAddressPrefix: 'VirtualNetwork'
          access: 'Allow'
          priority: 200
          direction: 'Outbound'
          destinationAddressPrefixes: []
        }
      }
      {
        name: 'AllowOutBoundActions'
        properties: {
          protocol: '*'
          sourcePortRange: '*'
          destinationPortRange: '*'
          sourceAddressPrefix: '*'
          access: 'Allow'
          priority: 210
          direction: 'Outbound'
          destinationAddressPrefixes: [
            '4.175.114.51/32'
            ...
            '20.84.218.150/32'
          ]
        }
      }
      {
        name: 'AllowOutBoundGitHub'
        properties: {
          protocol: '*'
          sourcePortRange: '*'
          destinationPortRange: '*'
          sourceAddressPrefix: '*'
          access: 'Allow'
          priority: 220
          direction: 'Outbound'
          destinationAddressPrefixes: [
            '140.82.112.0/20'
            ...
            '4.208.26.200/32'
          ]
        }
      }
      {
        name: 'AllowStorageOutbound'
        properties: {
          protocol: '*'
          sourcePortRange: '*'
          destinationPortRange: '*'
          sourceAddressPrefix: '*'
          destinationAddressPrefix: 'Storage'
          access: 'Allow'
          priority: 230
          direction: 'Outbound'
          destinationAddressPrefixes: []
        }
      }
      {
        name: 'DenyInternetOutBoundOverwrite'
        properties: {
          protocol: '*'
          sourcePortRange: '*'
          destinationPortRange: '*'
          sourceAddressPrefix: '*'
          destinationAddressPrefix: 'Internet'
          access: 'Deny'
          priority: 1000
          direction: 'Outbound'
        }
      }
    ]
  }
}

Deploy the bicep template to a subscription, here using powershell.

$splat = @{
    Name                  = -join ('github-nics-{0}' -f (Get-Date -Format 'yyyyMMddTHHMMssffffZ'))[0..63]
    Location              = 'norwayeast'
    TemplateFile          = 'src/bicep/main.bicep'
    TemplateParameterFile = 'main.bicepparam'
    Verbose               = $true
}
Select-AzSubscription -Subscription 'landing-zone-demo-001'
New-AzSubscriptionDeployment @splat

In the azure portal you can check the box for Show hidden types to reveal the networksettings. The resource will have your GitHub databaseId as a property and tag.

Resource group overview show hidden types — github networksettings resourece when show hidden types is checked

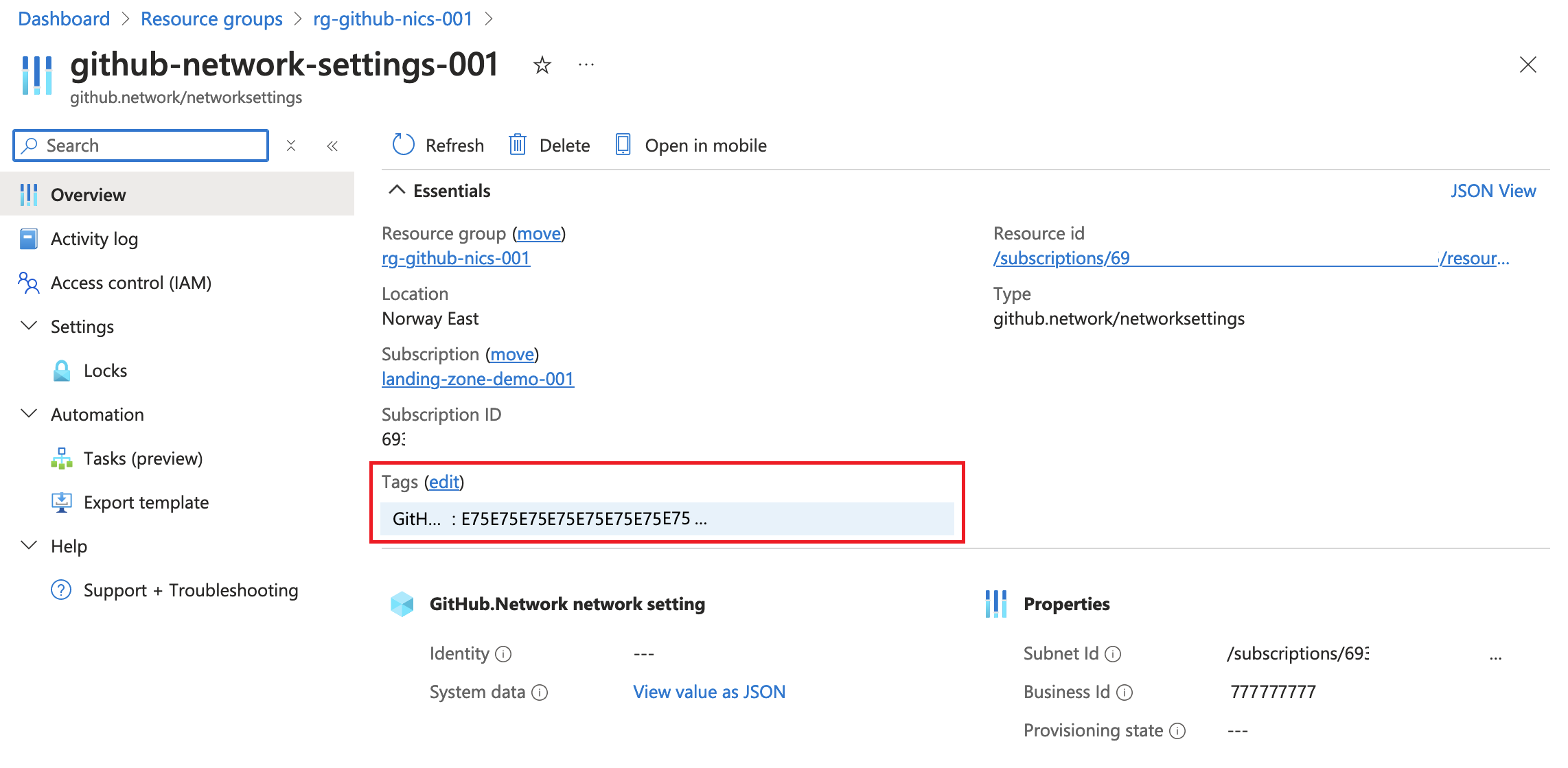

GitHub networksettings resource overview — github networksettings resource overview

Create network configuration

Back to GitHub, Azure private networking for GitHub-hosted runners is configurable at the organization level for organization owners. Create a new network configuration and inside it add an Azure Virtual Network. This prompts for details about the azure resource.

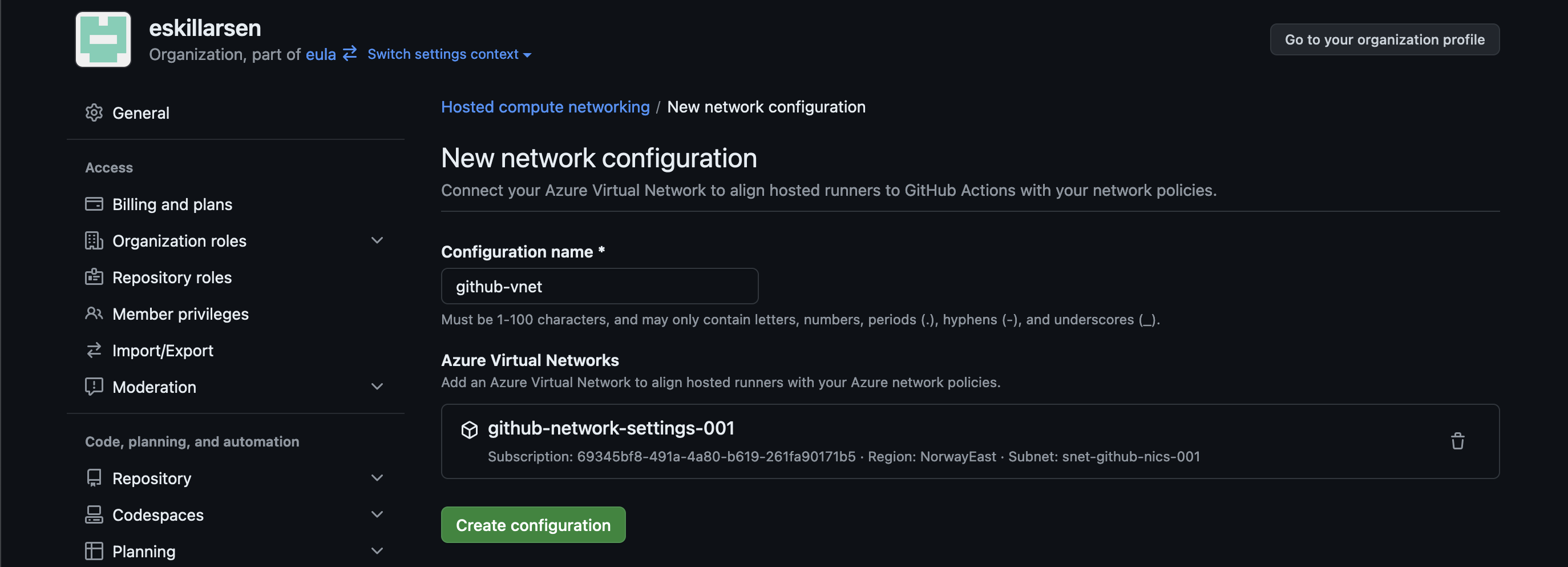

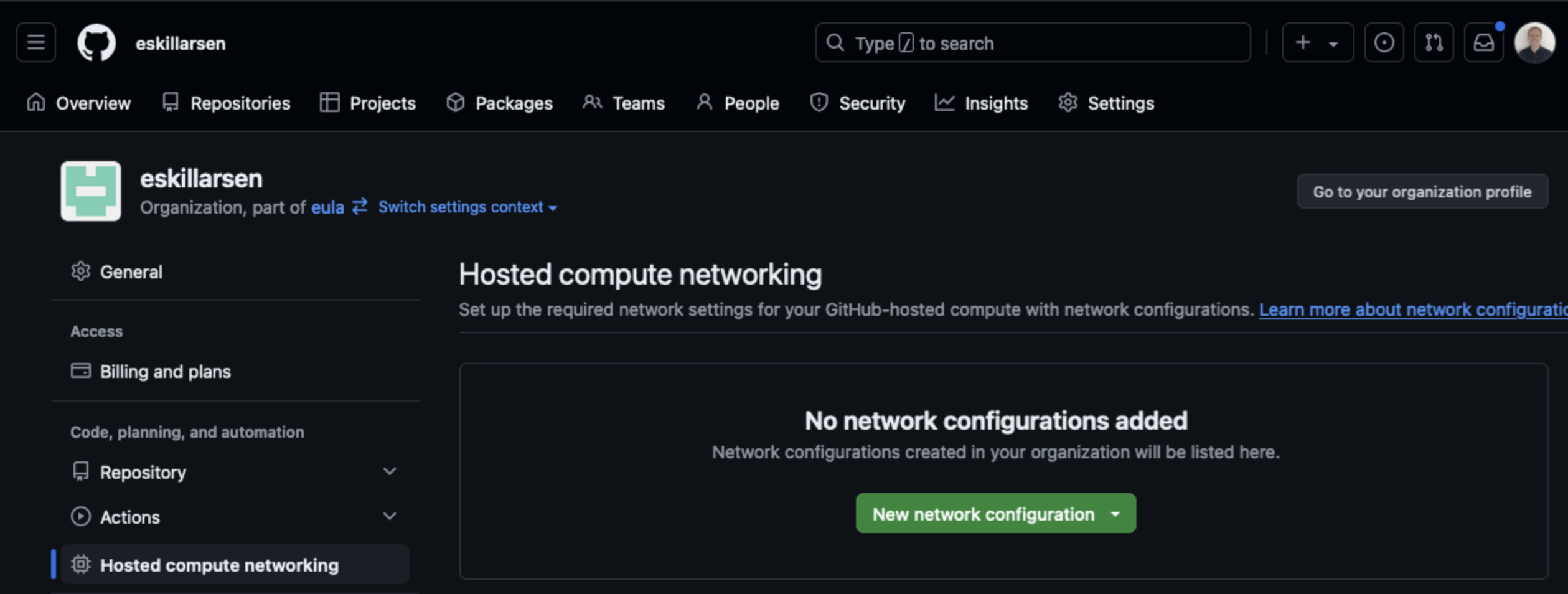

New network configuration — new network configuration

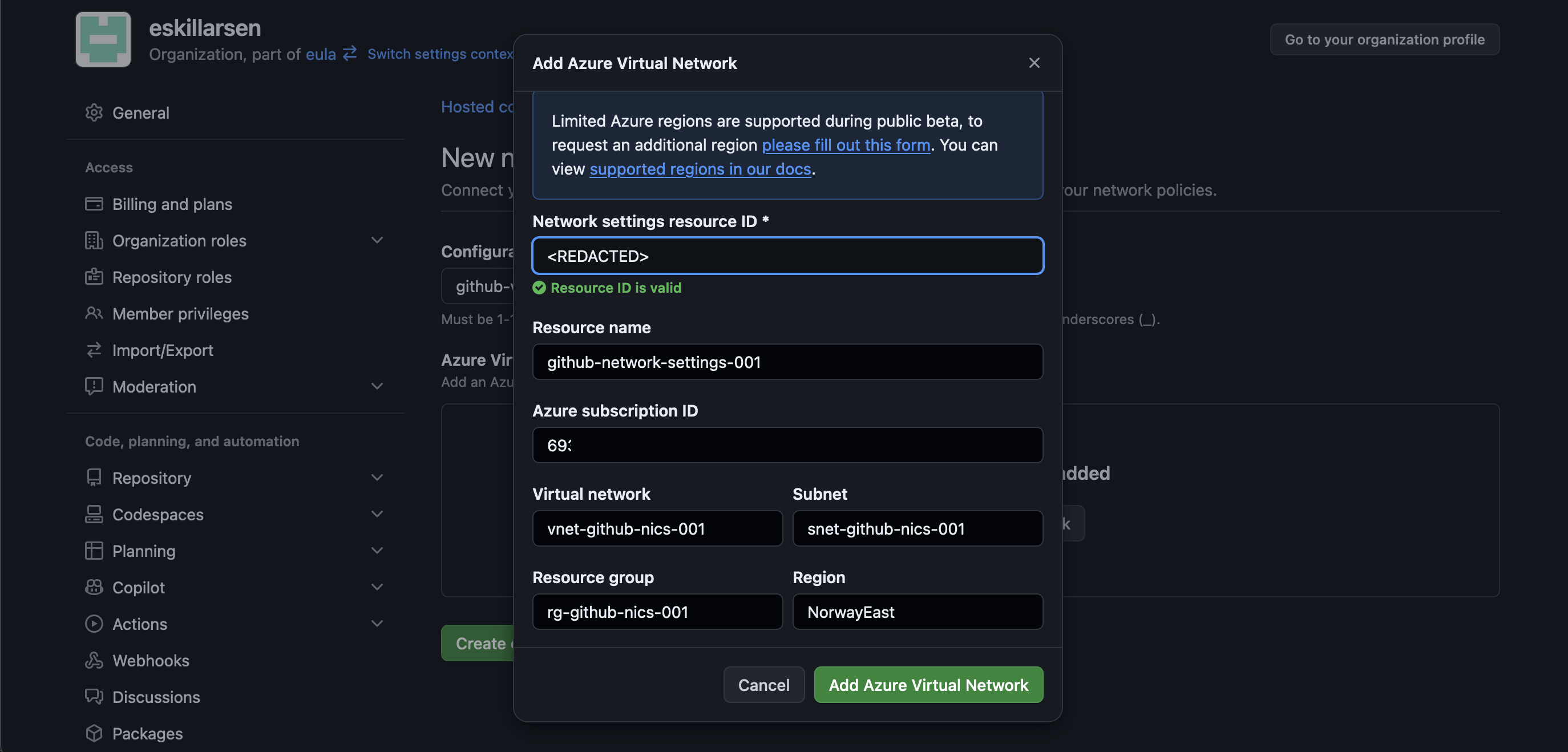

New network configuration details — new network configuration - details

New network configuration overview — new network configuration - overview

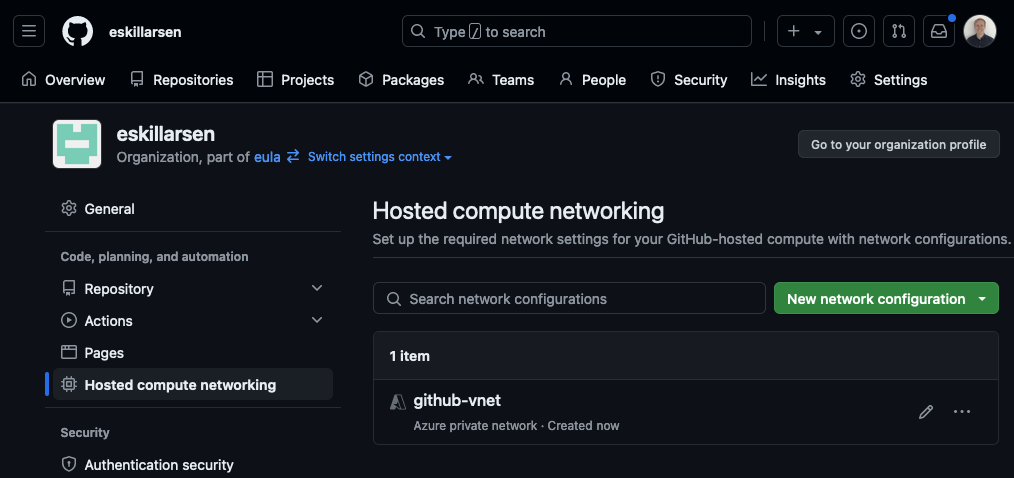

New network configuration completed — new network configuration - completed

Create runner group

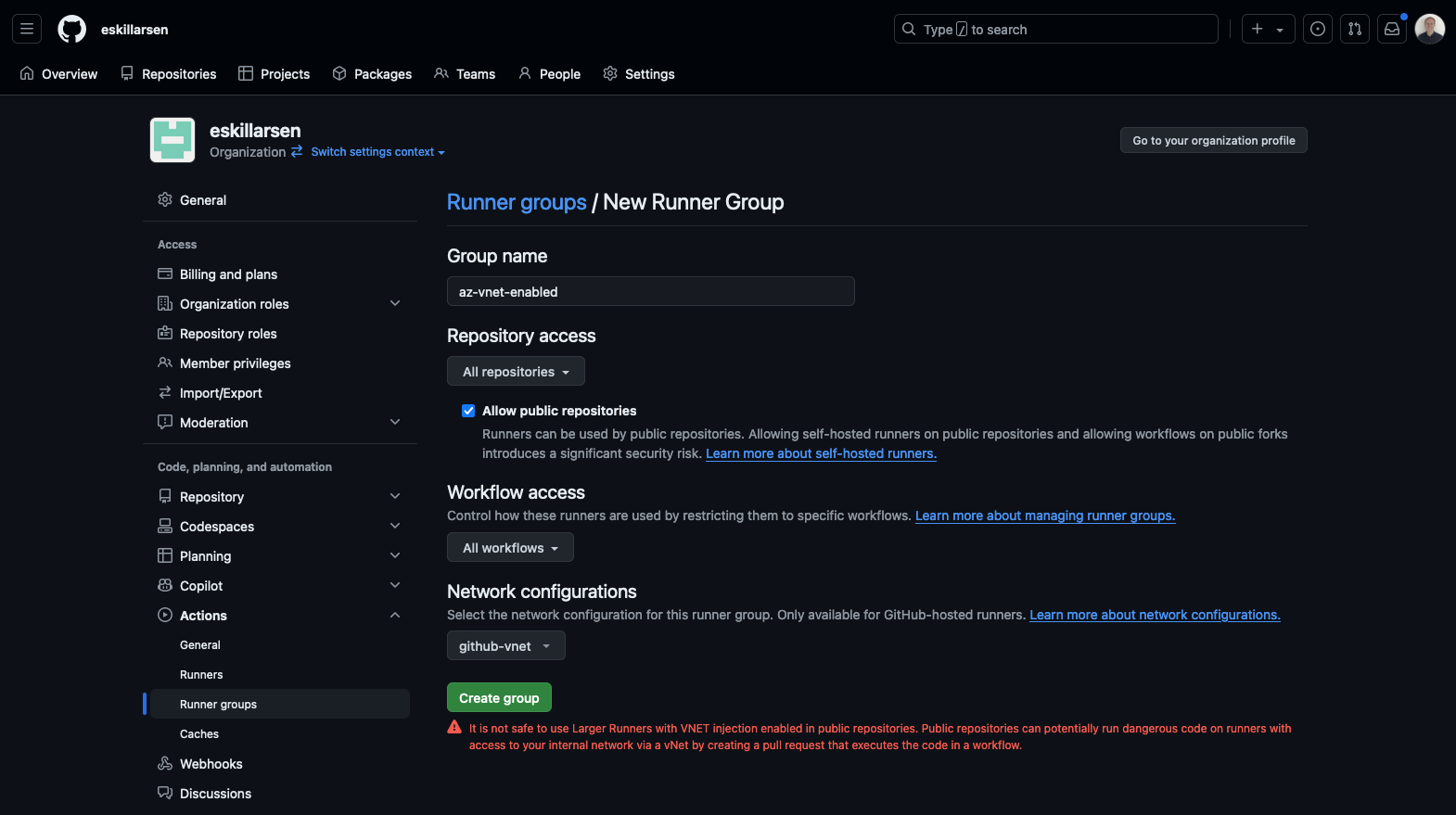

Create a runner group for the new runner, assign the network configuration to the group.

Create GitHub-hosted runner

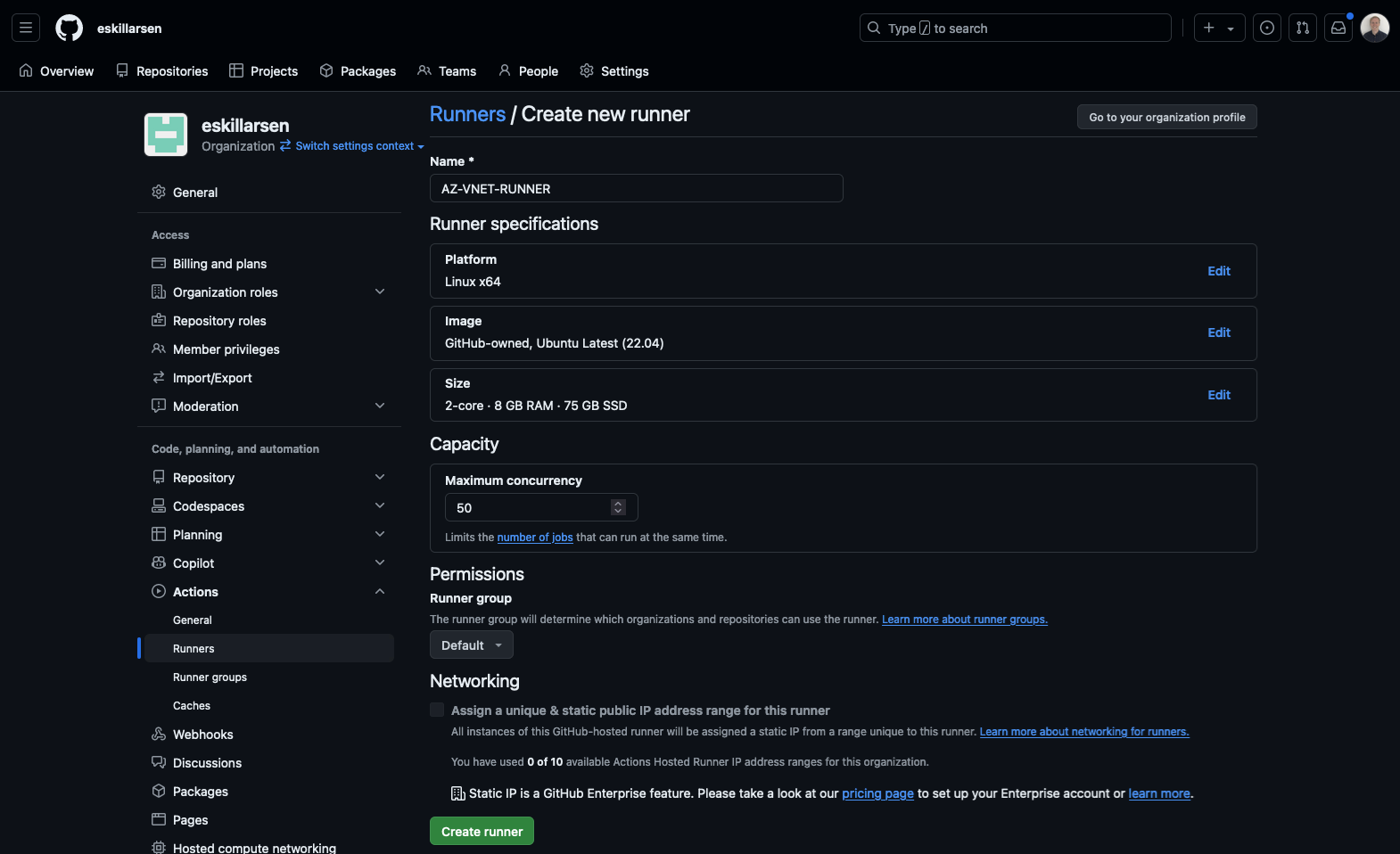

Create a new GitHub-hosted runner and place it in the newly created runner group, as this group is assigned the network configuration.

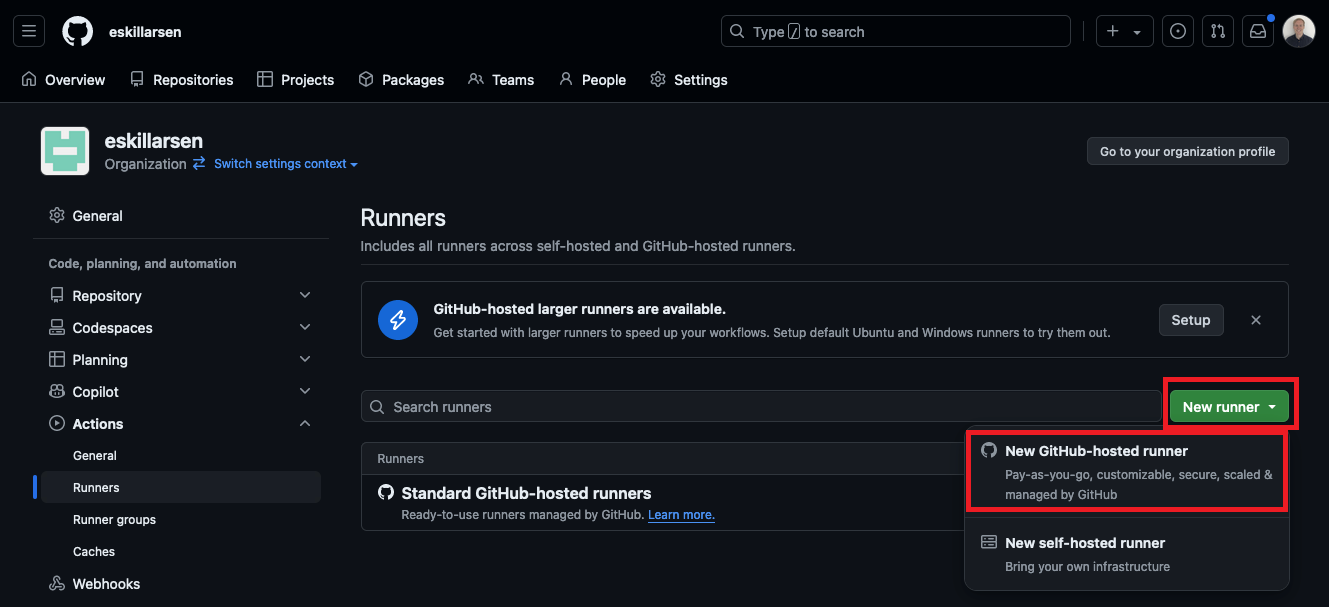

New GitHub-hosted runner - details — new GitHub-hosted runner - details

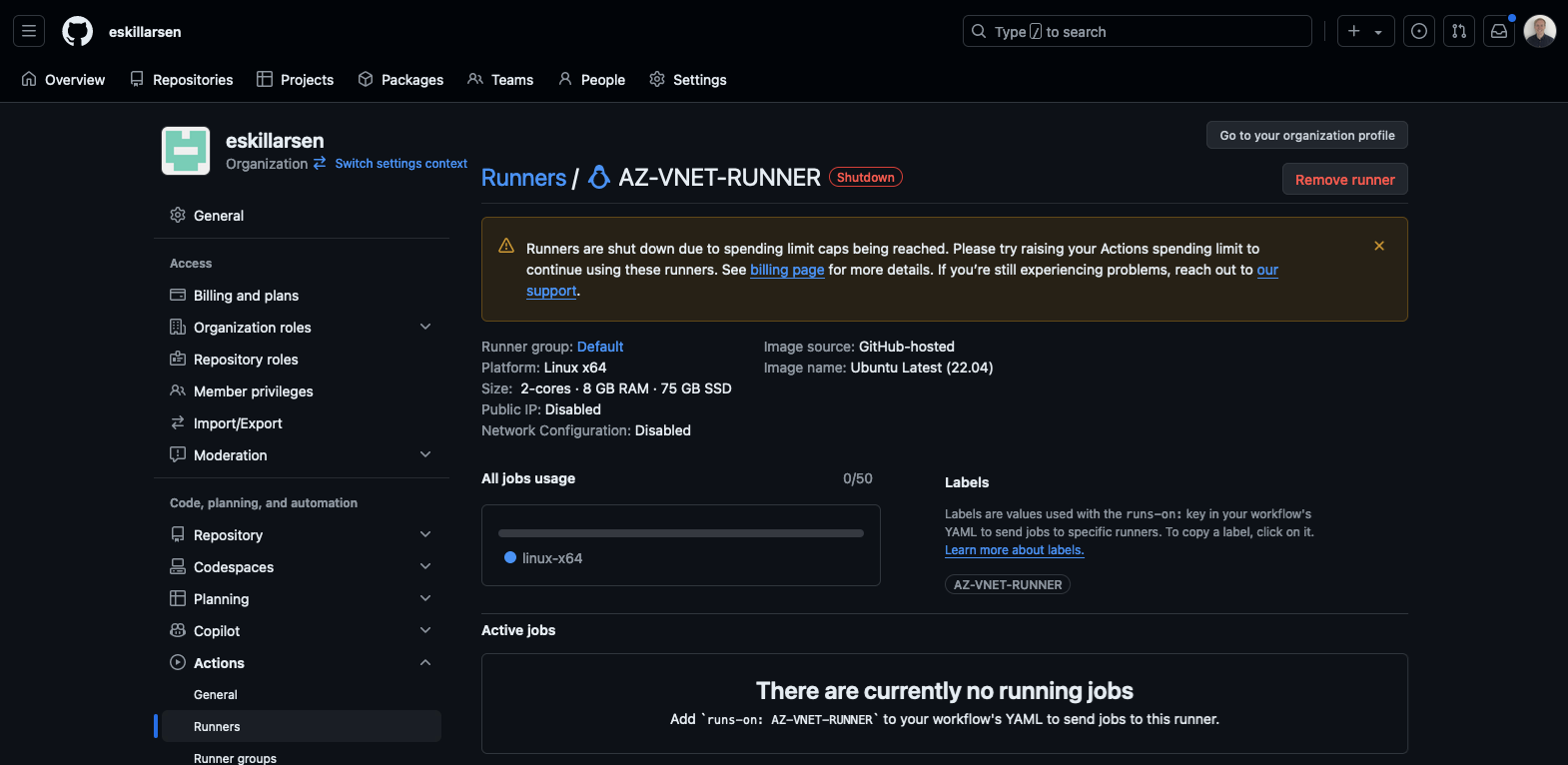

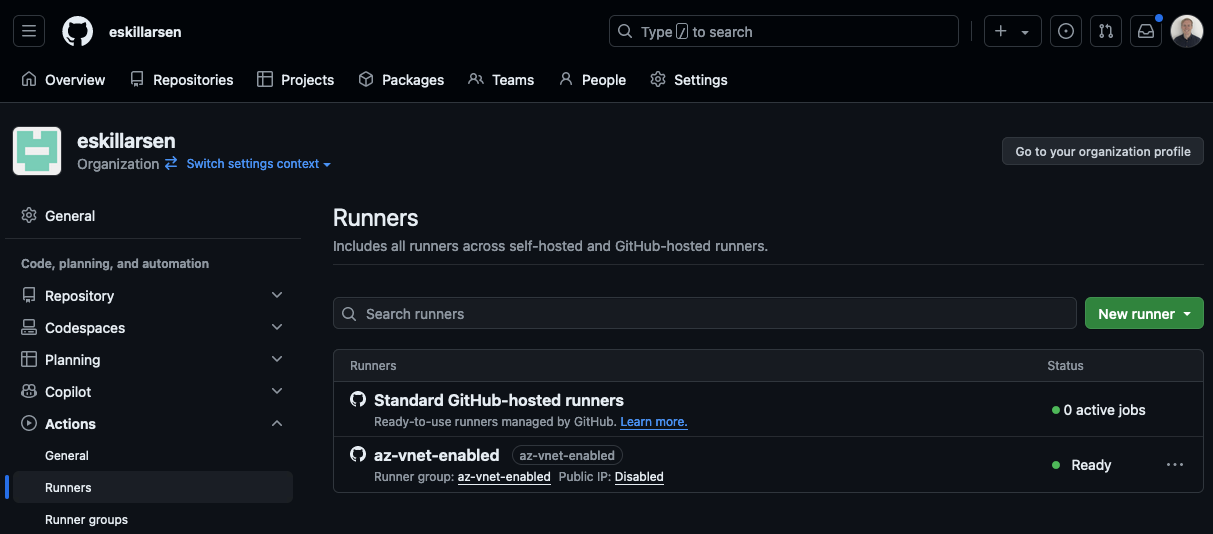

New GitHub-hosted runner created — new GitHub-hosted runner created

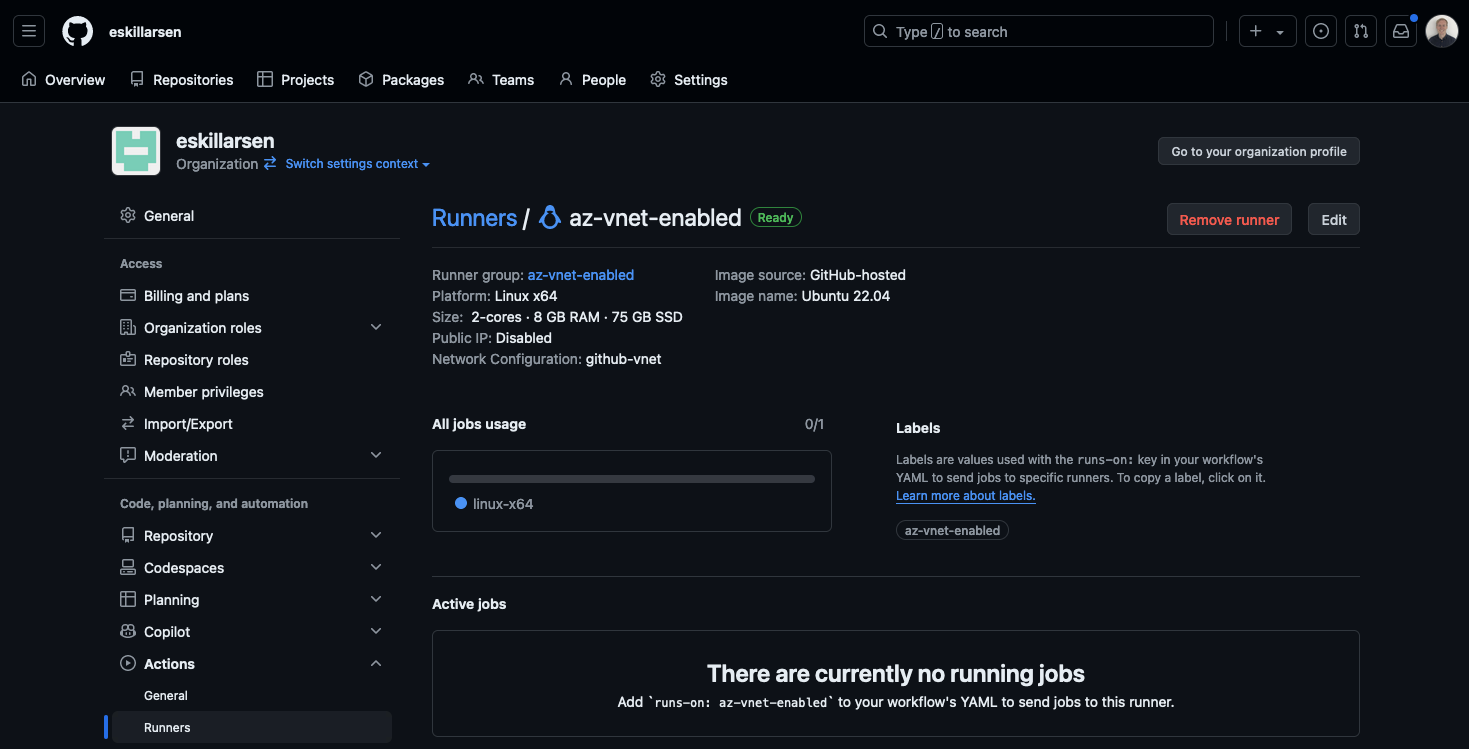

GitHub-hosted runner details — GitHub-hosted runner - details

Workflow in progress

Now with the setup complete, create a GitHub Action workflow upload a file to a private storage account and trigger it manually. Full example here. The important part is to set runs-on: to be the runner group!

In GitHub you can get an overview of the runner an its jobs, and in the Azure portal you can see new NICs showing up in the resource group.

 1env:
 2  PRIVATE_STORAGE_ACCOUNT_NAME: ${{ vars.PRIVATE_STORAGE_ACCOUNT_NAME }}
 3  PRIVATE_STORAGE_ACCOUNT_CONTAINER_NAME: ${{ vars.PRIVATE_STORAGE_ACCOUNT_CONTAINER_NAME }}
 4
 5jobs:
 6  put-file-in-private-storage:
 7    runs-on: [az-vnet-enabled]
 8
 9    steps:
10      - name: Install pwsh modules
11        shell: pwsh
12        run: 'Install-Module -Name Az.Storage -RequiredVersion 6.1.3 -Force'
13
14      - name: Azure Login
15        uses: azure/login@v2
16        with:
17          client-id: ${{ vars.AZURE_CLIENT_ID }}
18          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
19          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}
20          enable-AzPSSession: true
21
22      - name: Put blob in container
23        shell: pwsh
24        run: |
25          $fileName = "testdata-{0}.log" -f (Get-Date).ToString("yyyyMMdd-HH-mm-ss")
26          Set-Content -Path $fileName -Value "example content"
27          $stContext = New-AzStorageContext -StorageAccountName $env:PRIVATE_STORAGE_ACCOUNT_NAME
28          $splat = @{
29              File = $fileName
30              Container = $env:PRIVATE_STORAGE_ACCOUNT_CONTAINER_NAME
31              Context = $stContext
32          }
33          Set-AzStorageBlobContent @splat

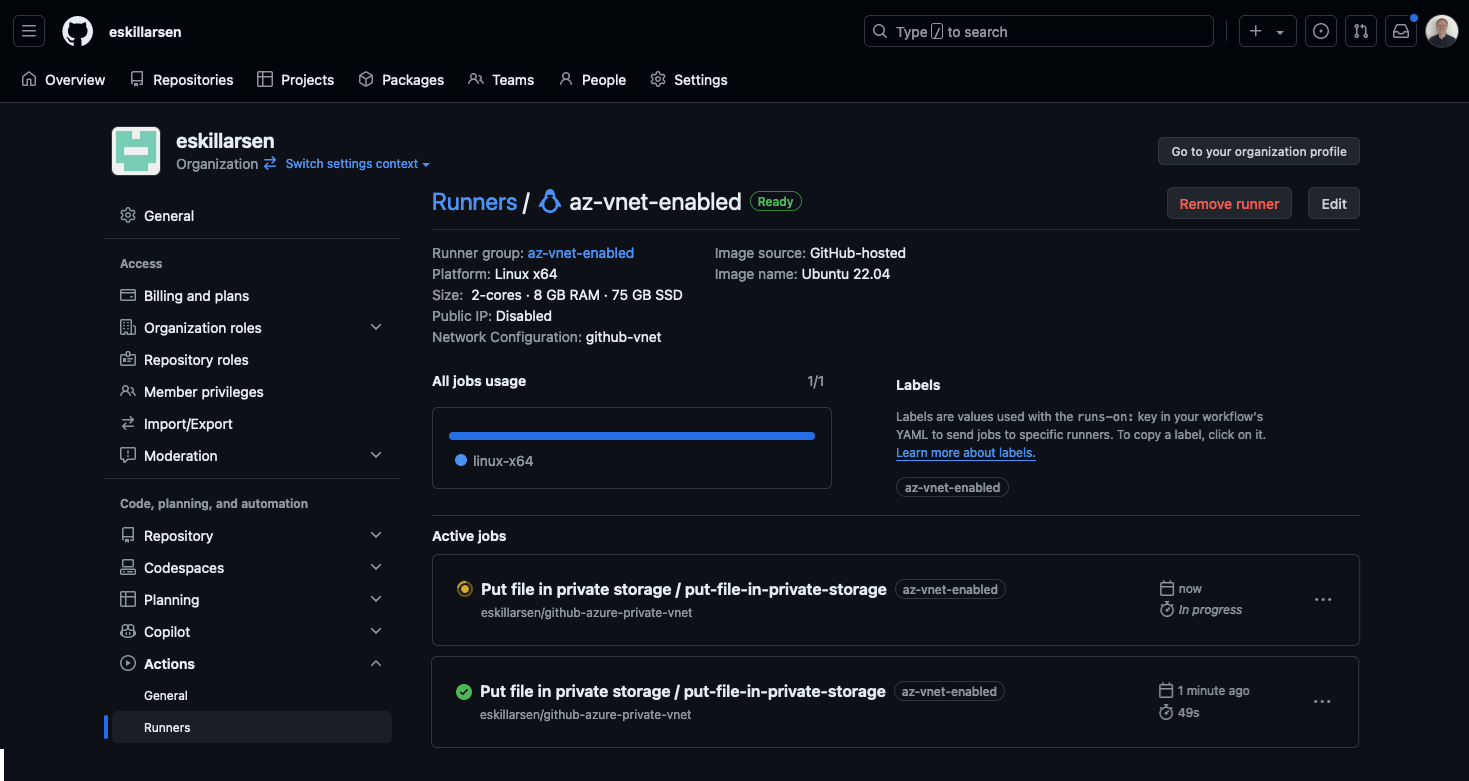

Runner with active jobs — active jobs on runner

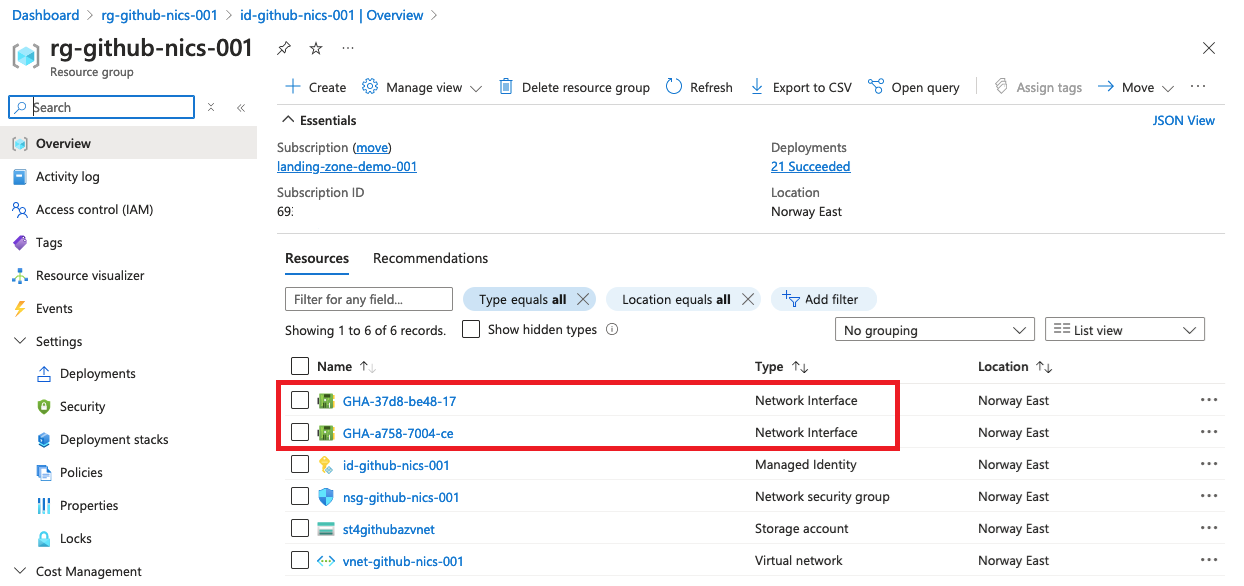

Resource group overview — network interfaces created by GitHub

Results

Once the storage account is configured to allow traffic from the runner-subnet, the workflow successfully creates a blob!

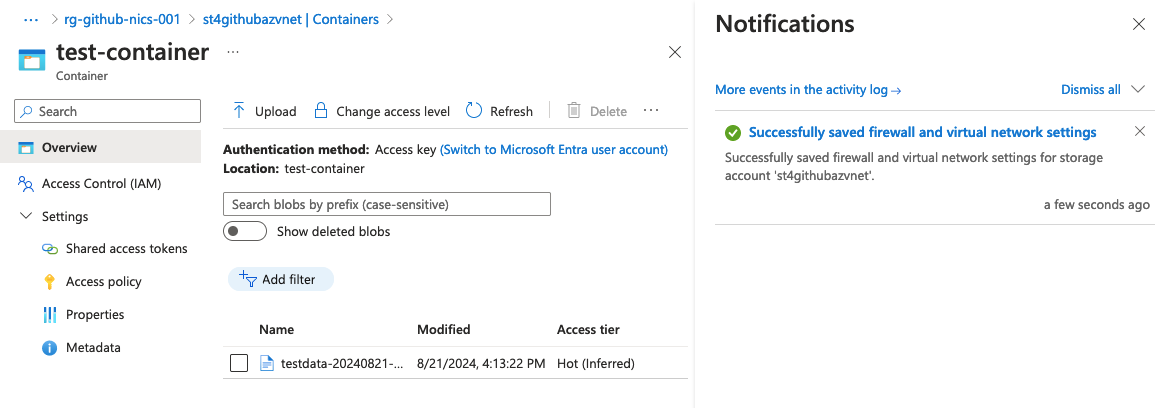

File uploaded to storageaccount — file uploaded

Logs

On the logs for the resource group with the runner vNet, there will be events initiated by GitHub Actions API & GitHub CPS Network Service.

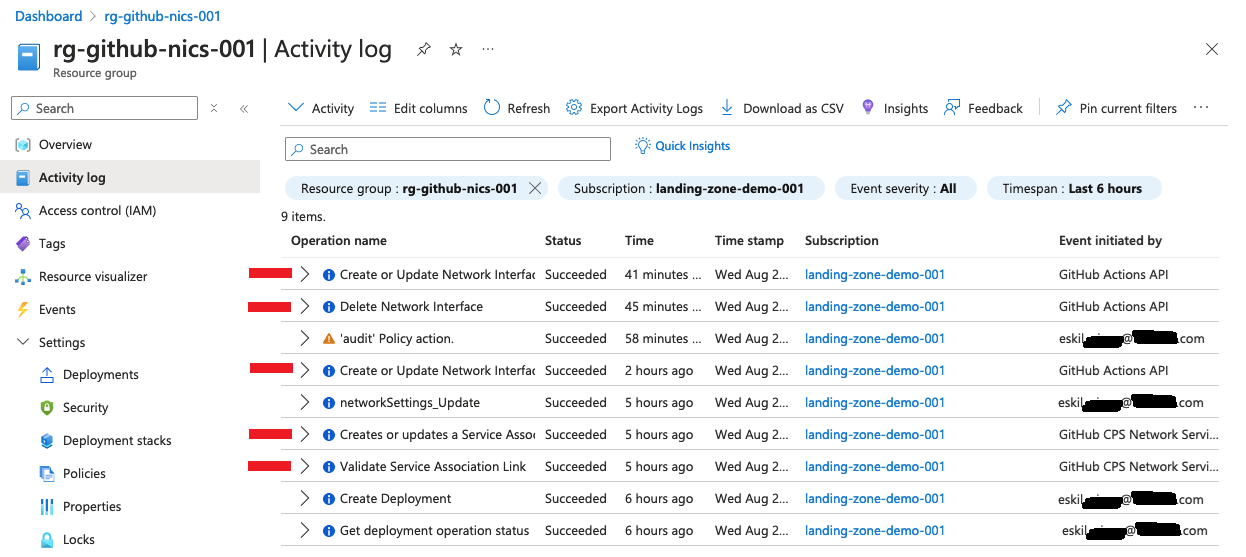

Resource group activity log — Resource group - Activity log

Gotchas

Disabled by enterprise administrators

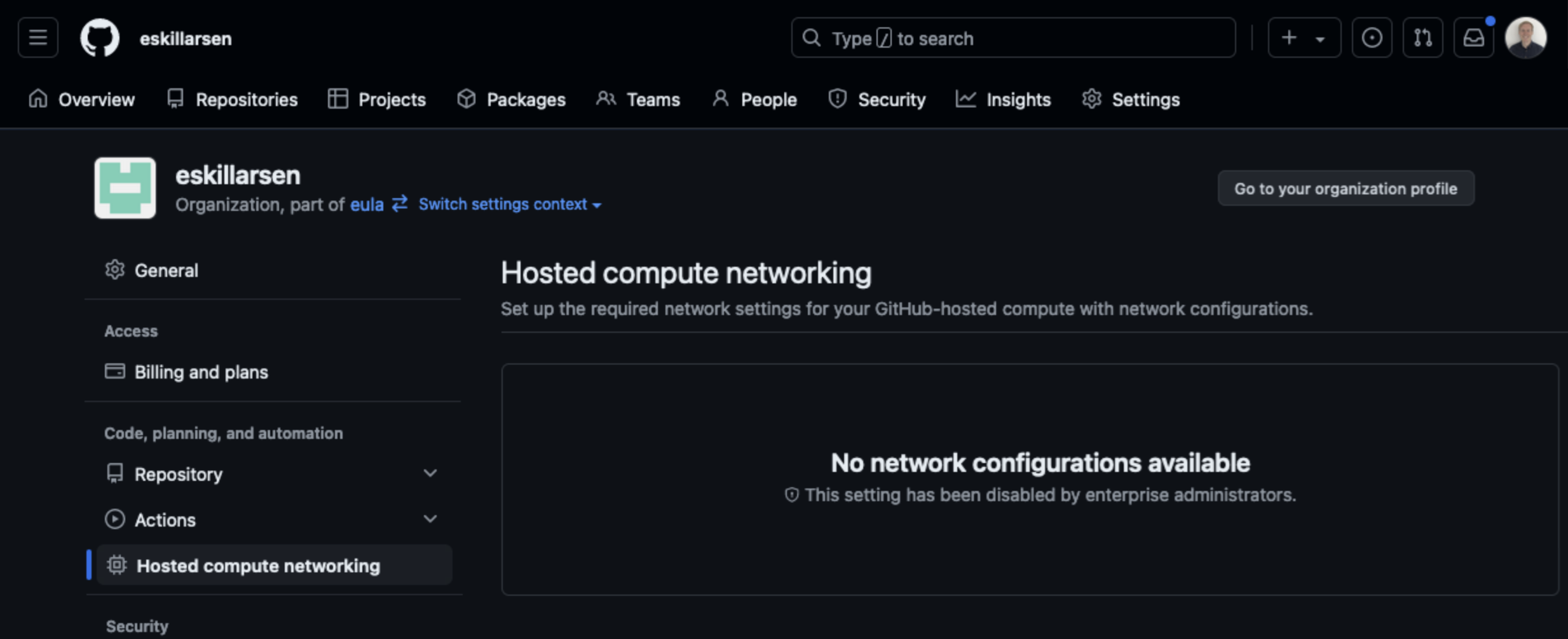

In my enterprice the Hosted compute networking was disabled and I was unable to create new network configuration.

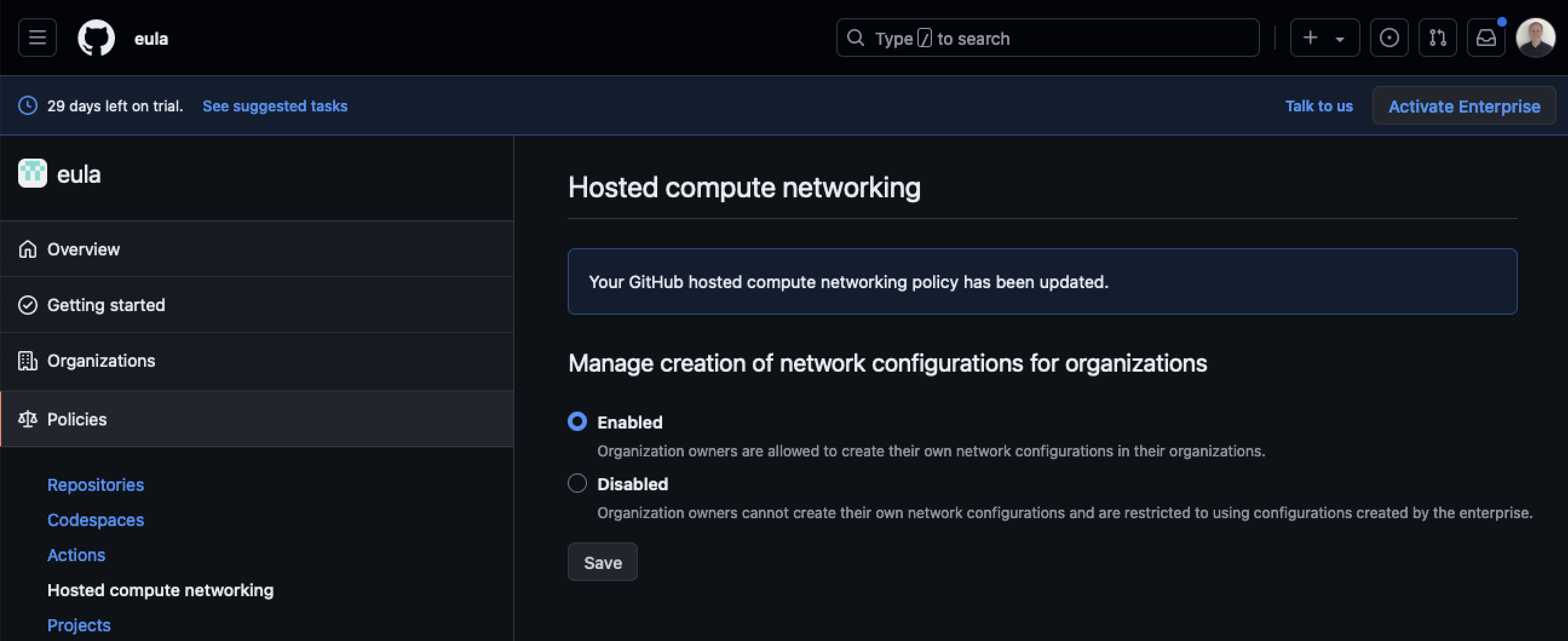

This was solved by heading into the policies for the enterprice and enabling creation of network configurations under the section Hosted compute networking.
